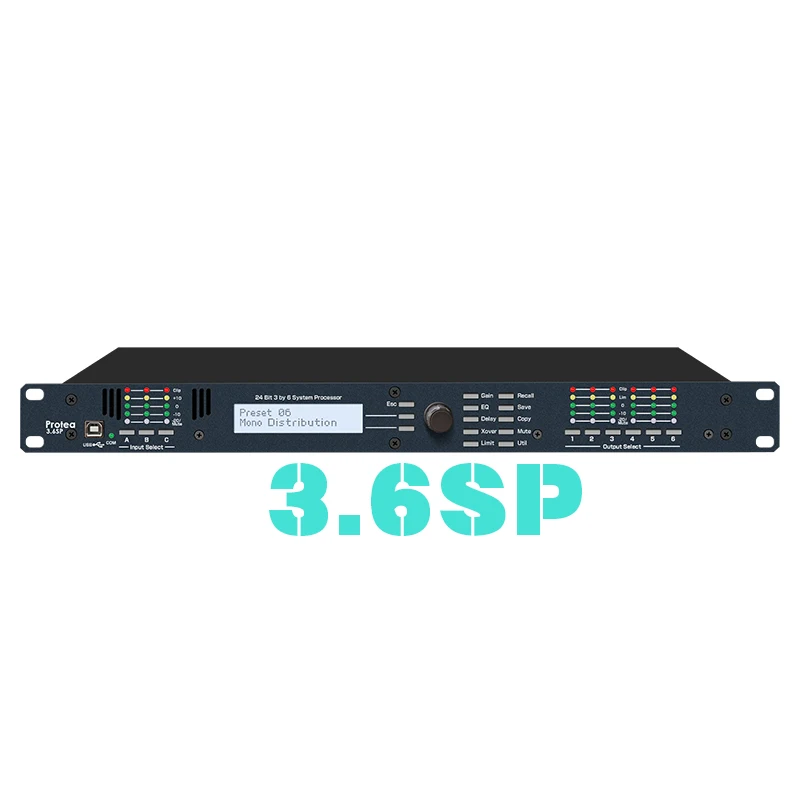

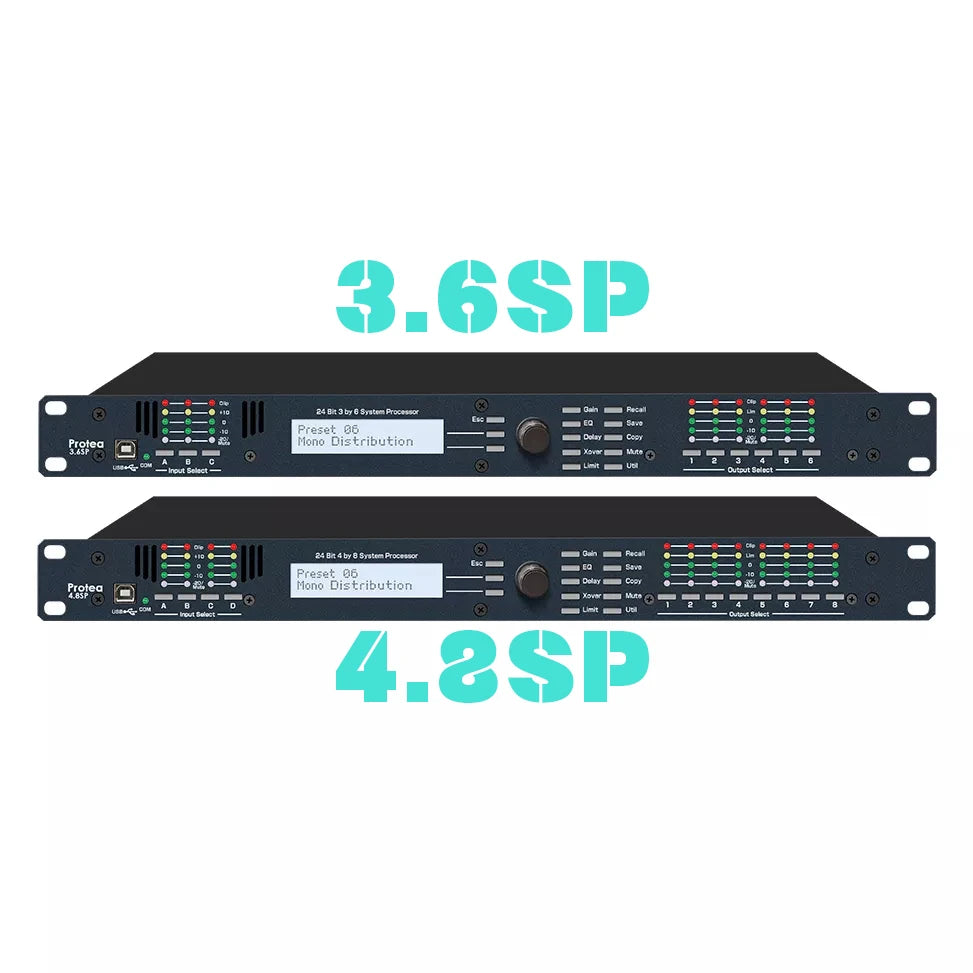

PaulkitsonProtea 3.6SP/4.8SP Digital Speaker Audio Processor Original Software 3/4Input 6/8 Output Professional Sound System

paulkitson protea 3.6SP/4.8SP Digital Speaker Audio Processor original software 3/4Input 6/8 Output Professional Sound System

3.6SP/4.8SP uses advanced DSP technology, from 24 bit, 48kHz delta-sigma A/D converter and 128 times oversampling. Digital processing includes: gain, polarity switching, parametric EQ shelf filter, time delay, crossover function, compression, limiting and signal routing, all processed by a pair of 120MHz high performance DSP processors. The D/A converter uses a 24-bit delta-sigma converter with 128 times oversampling. All inputs and outputs use balanced XLR connectors to prevent RF interference. You can adjust gain, delay or 6-band EQ for each input channel (each section can be selected as parametric or Hi/Lo Shelf). Signals can be routed within the DSP prior to the crossover point, allowing signals from two or more input channels to be routed
After mixing, it is routed to the output channel. On the output channel, you can use 4-band EQ (each section can be selected as parametric or high/low shelf), delay, gain, invert or compressor and other modules, with such powerful DSP processing function, but only 1U height, and all audio interfaces use standard XLR (XLR) interfaces.

The 3.6SP/4.8SPcan store up to 30 presets. The preset file adopts the "snapshot" method to completely store all the control data of all the current channels.
3.6SP/4.8SP is a powerful and easy-to-operate processor. Whether for live performances or for fixed installations, it provides precise audio processing and superior sound.

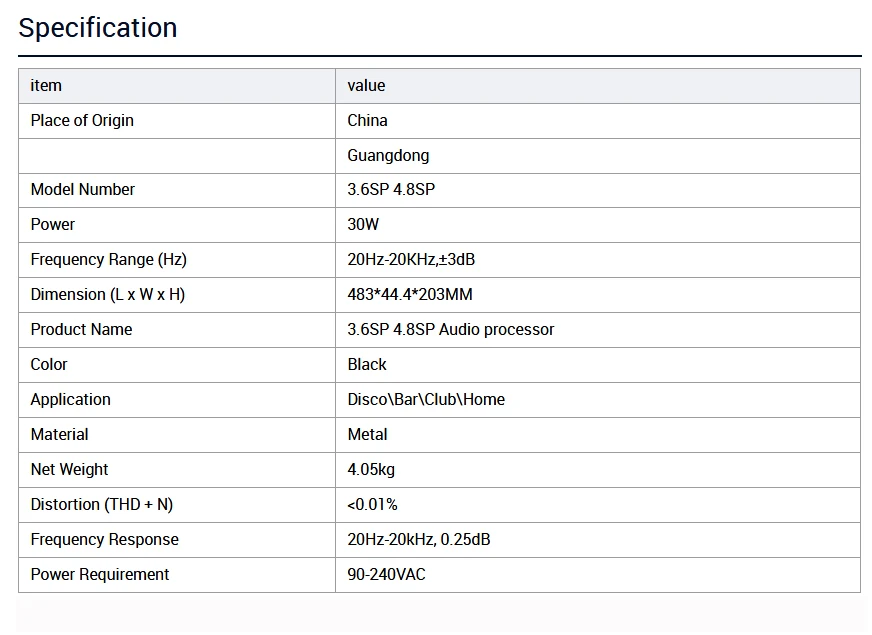

Product parameters

◎ Occupies one rack space
◎ DSP480 four input interfaces - eight output interface inputs can be assigned to any one output
◎ DSP360 three input interfaces-
Six output jack inputs can be assigned to any one output
◎ Slope is 12 dB/Oct, 18 dB/Oct, 24 dB
◎ Oct and 48dB/Oct / 682ms input delay, 21ms output delay
◎ Using Linkwits-Riley, Bessel and Butterworth filters
◎ Parametric EQ: full bandwidth, 1/64th to 4th octave range
◎ Each output is equipped with a limiter Intuitive user interface
◎ Through the front panel, RS232 can be programmed
◎ 48 KHz sampling frequency
◎ Independent input and output instructions
◎ Balanced input and output XLR speaker connectors
◎ Equipped with special PC control software
◎ Frequency Response Frequency Response: 20Hz-20kHz, ±0.25dB
◎ Distortion (THD + N): <0.01%
◎ Dynamic range: >110
◎ Maximum delay: 682ms on inputs, 682ms on outputs
◎ Output gain adjustment: ﹣40dB to ﹢12dB
◎ Parametric equalizer: 6 segments for each input, 4 segments for each output
◎ Input Graphic Equalization Input GEQ: No
◎ Crossover filters: 12, 18, 24, or 48dB per octave
◎ Limiter threshold: ﹣20 to +20dBu
◎ Maximum output Level: ﹢20dBu
◎ Input impedance: 18kΩ
◎ Output impedance: 100Ω
◎ Power Requirement Power Requirement: 90-240 VAC
◎ Dimensions Dimensions (W×H×D, mm): 483×44.4×203
◎ Net Weight: about 4.05kg

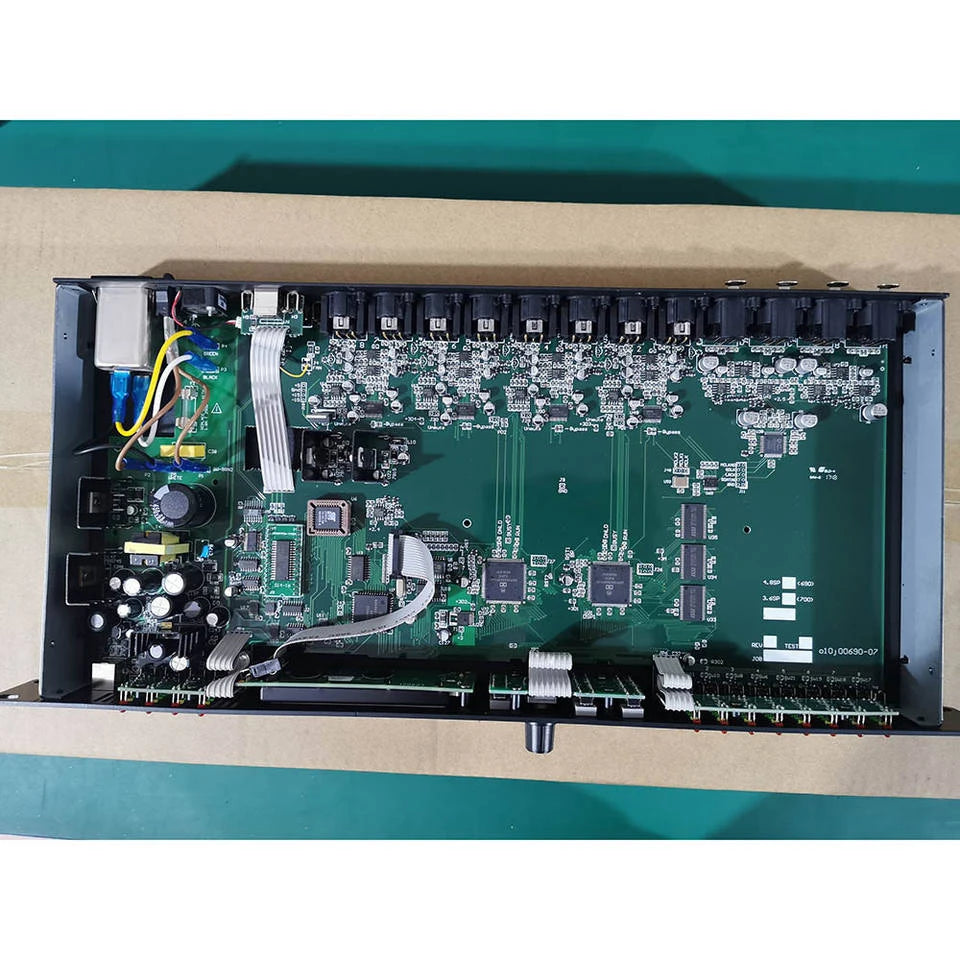

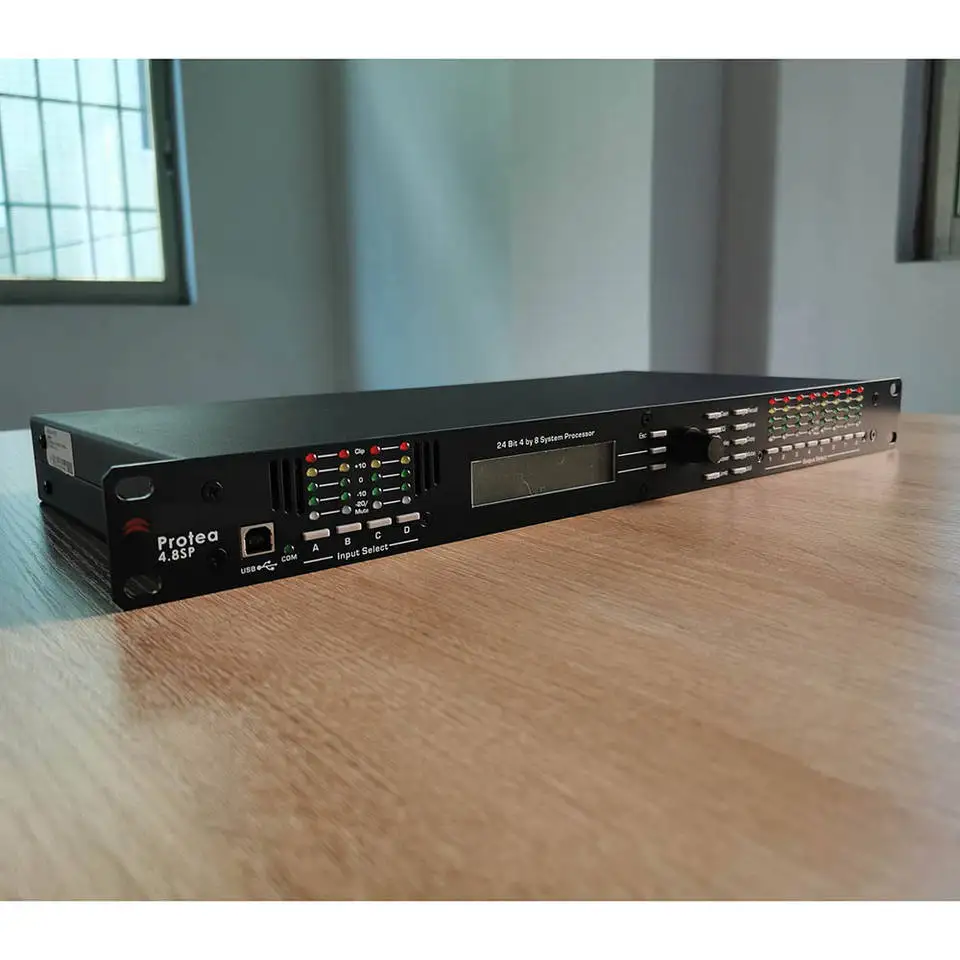

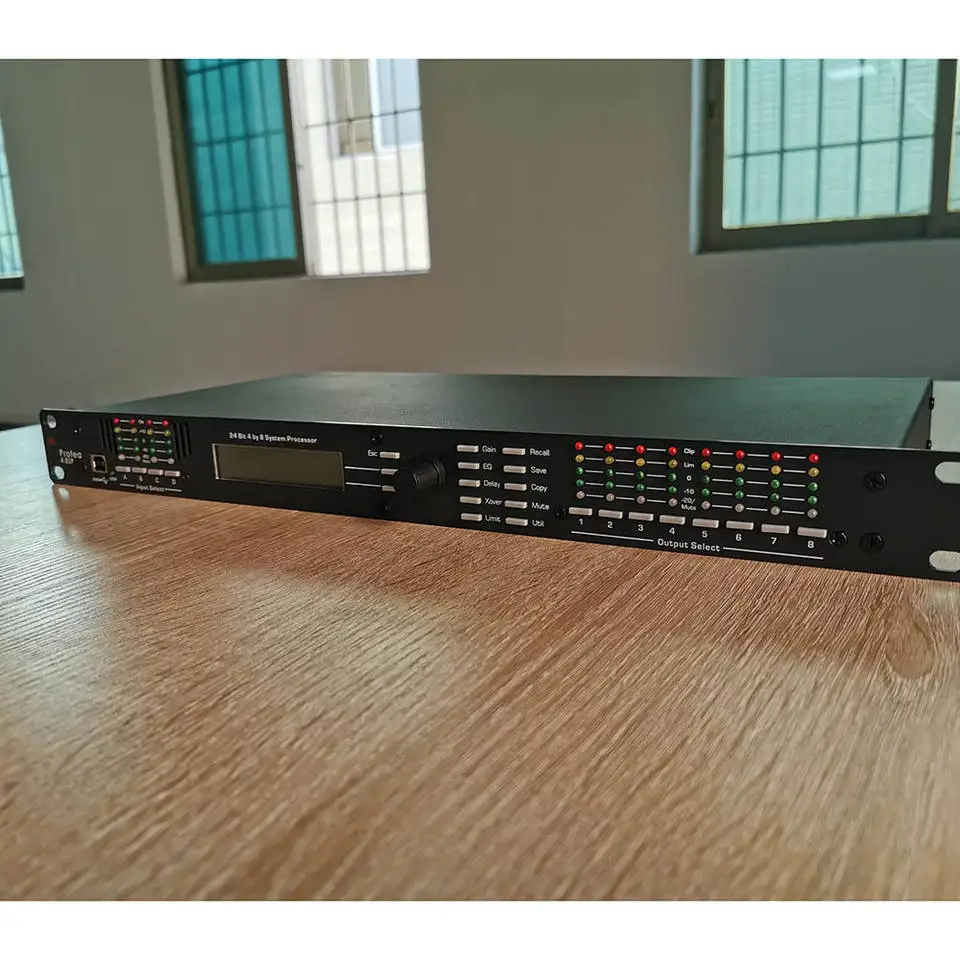

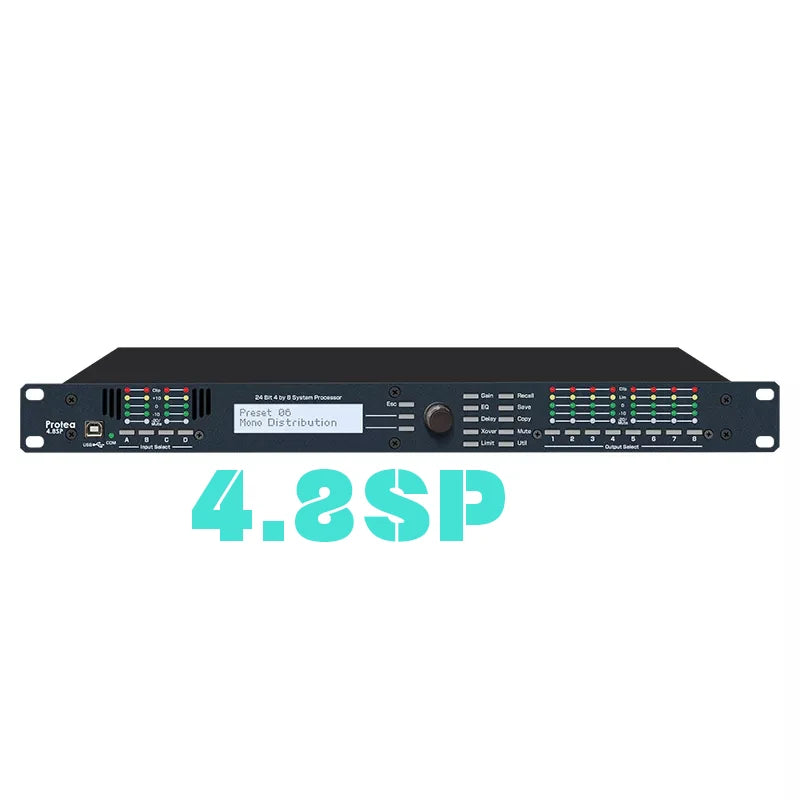

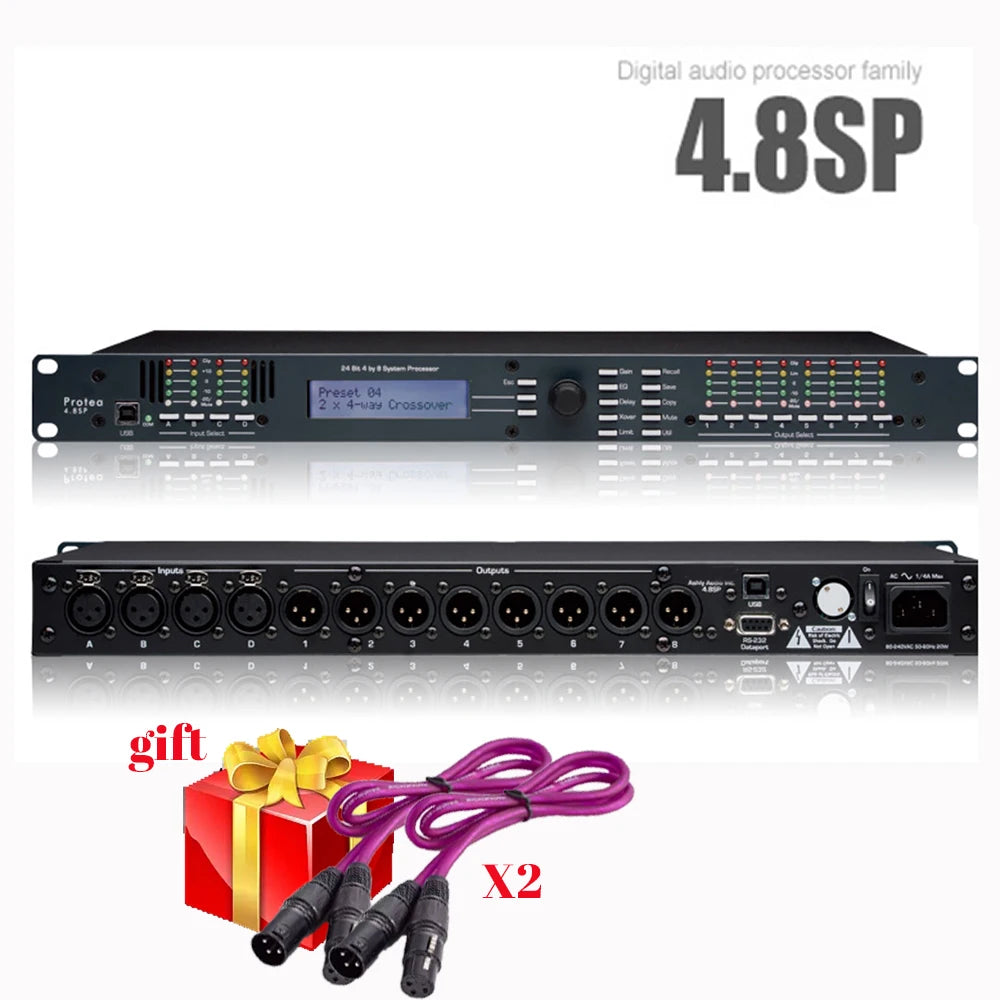

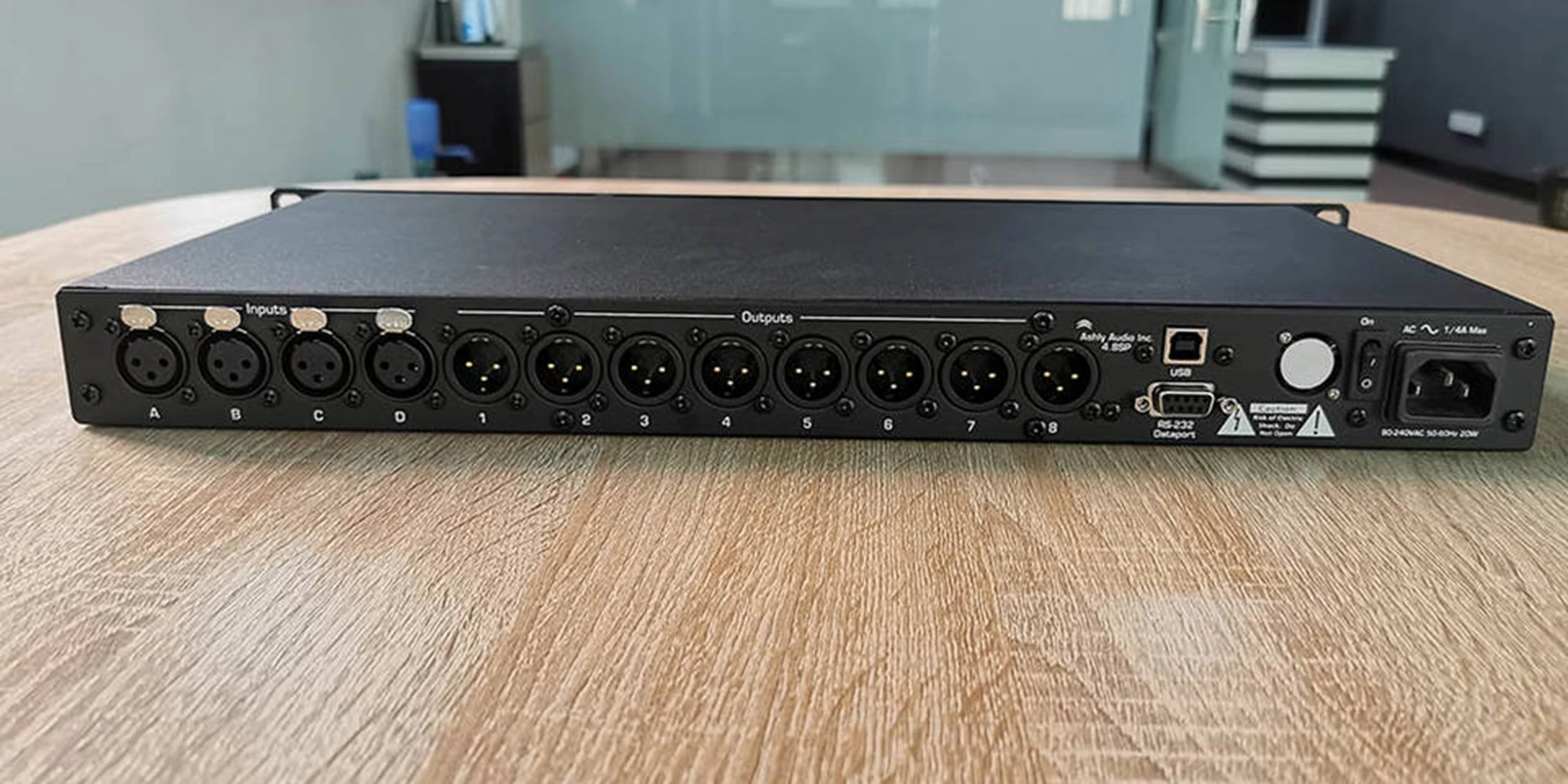

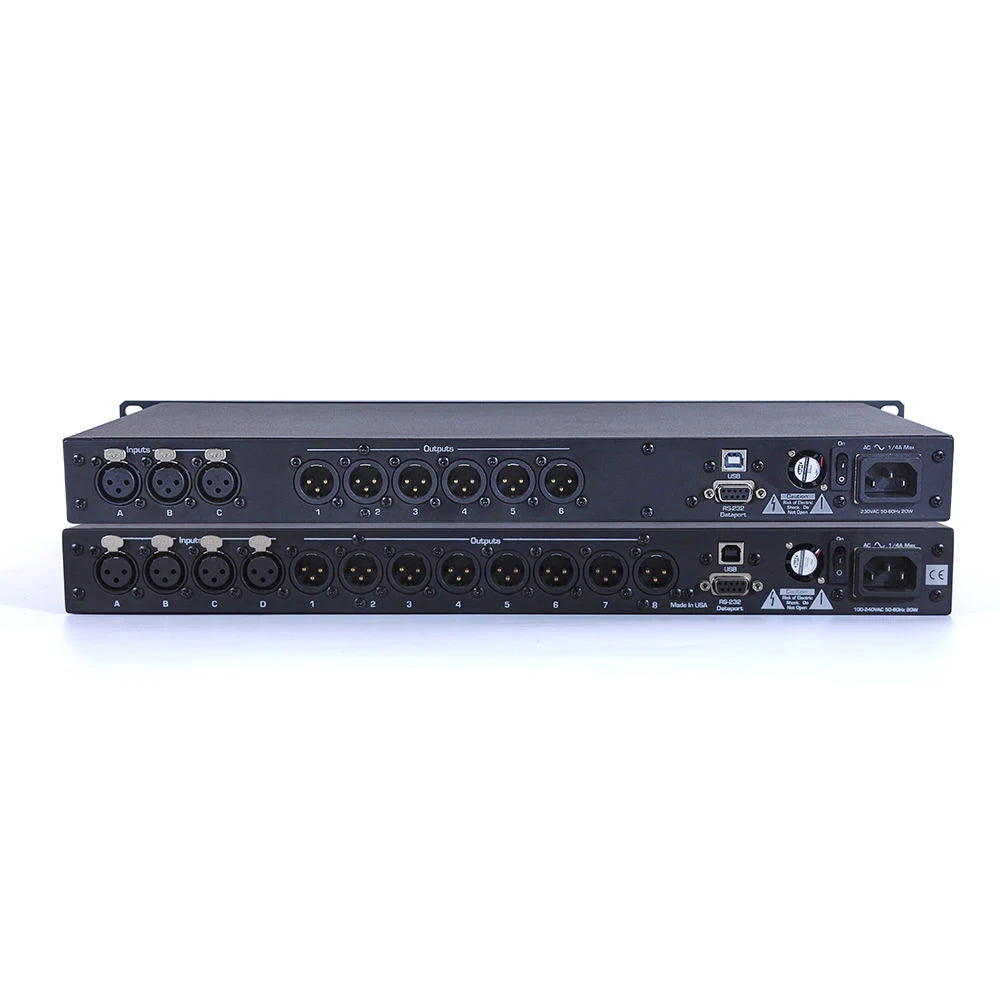

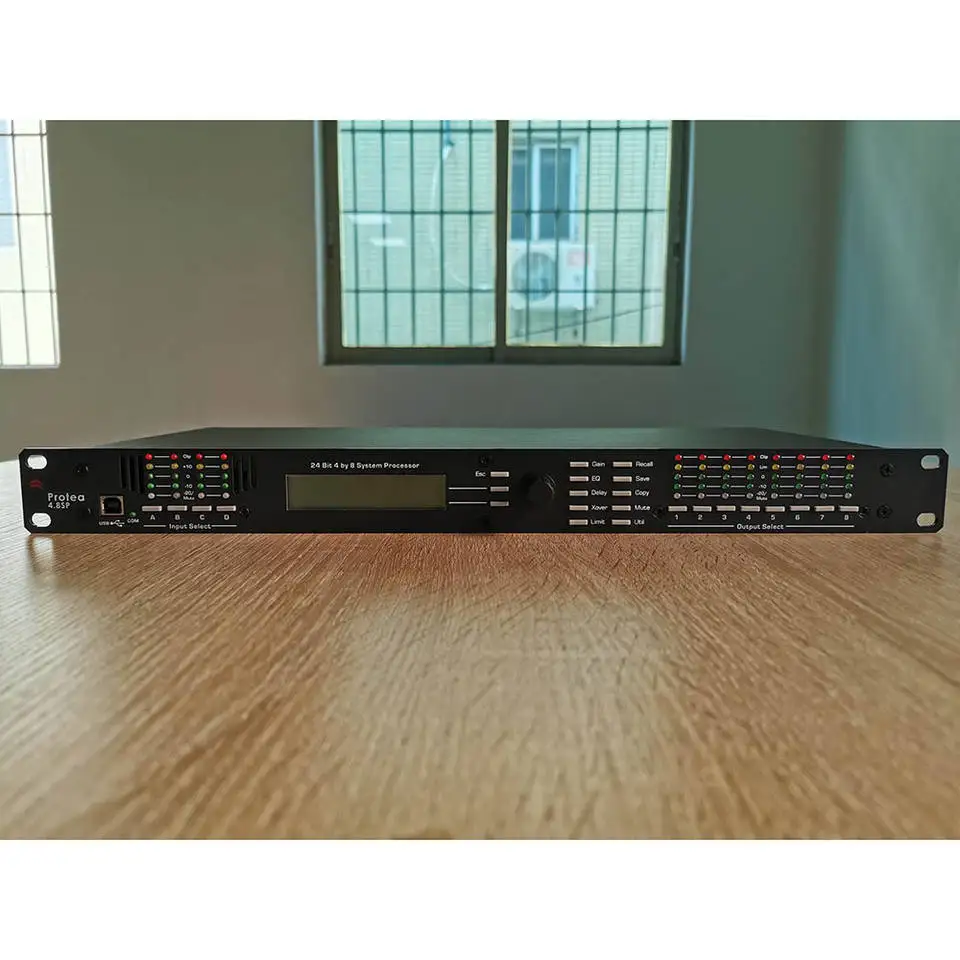

Physical photos
