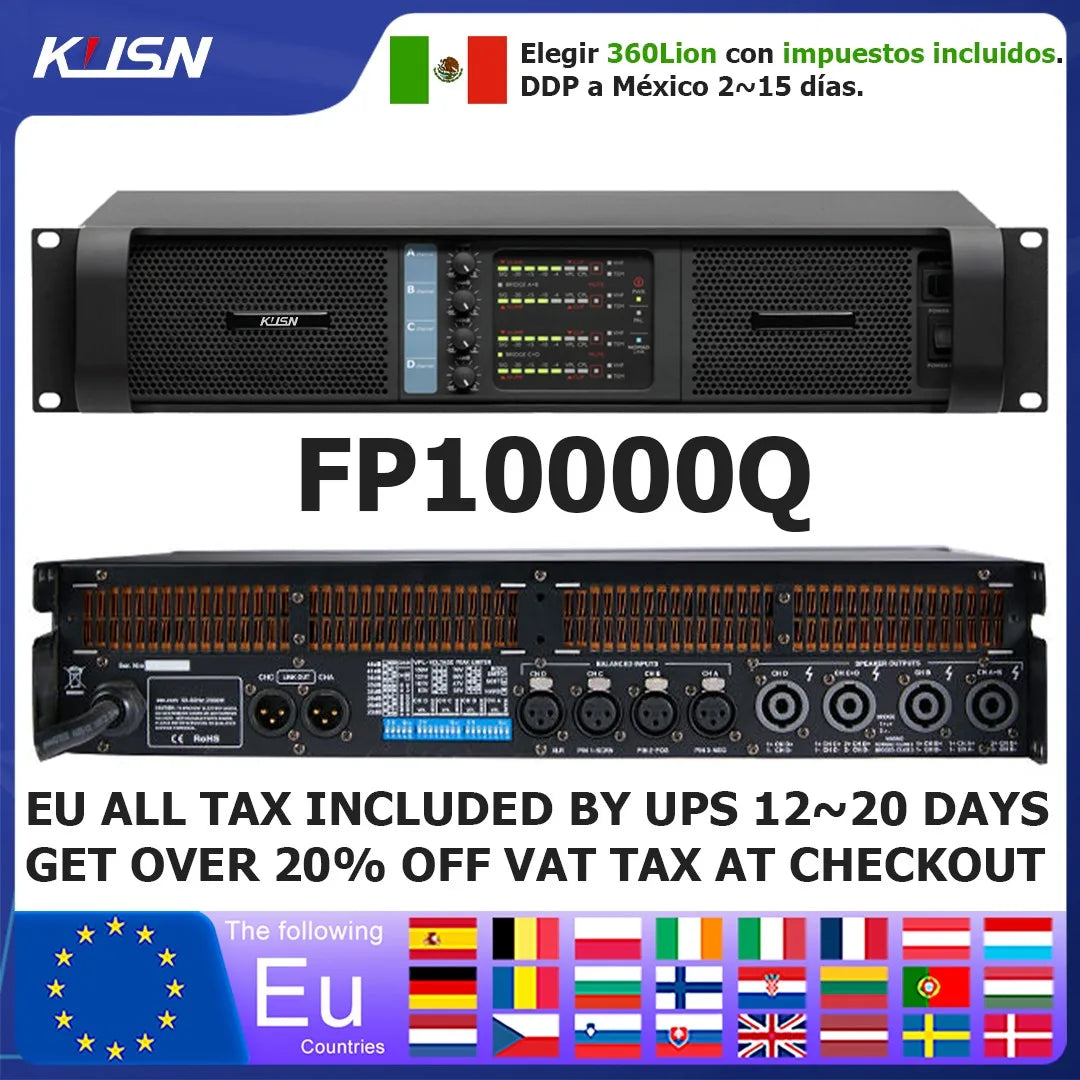

FP10000Q/FP20000Q 2500Wx4 Professional Digital Amplifier Stable 2 Ohm FP 10000Q 2U High Power Amplifier For Subwoofer Speaker

FP series is a high performance switching power amplifier,each channel with independent adjustable peak output voltage.It built with intelligent protection circuit provides advanced technology.It is good for large-scale performances, venues, business senior entertainment clubs and other places.

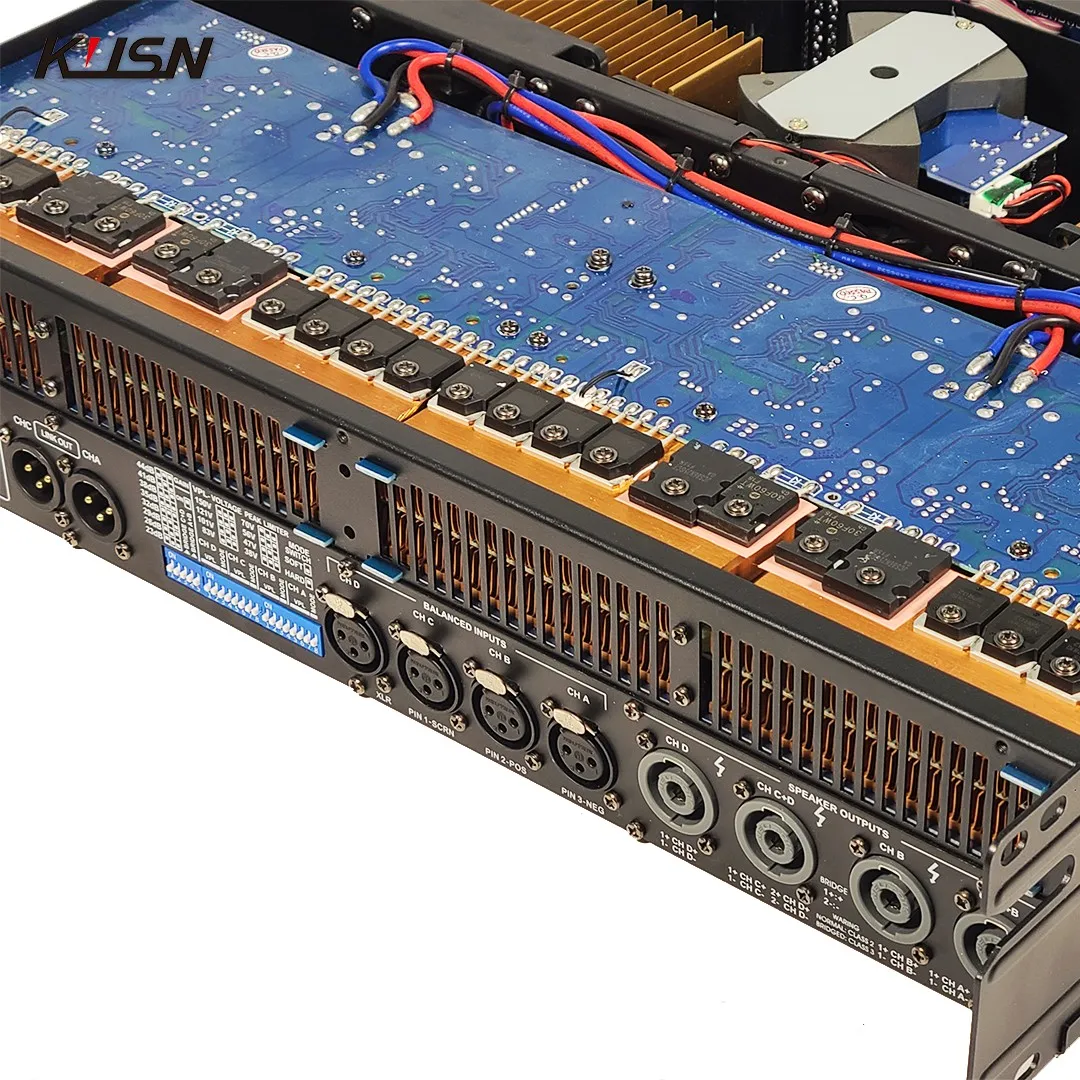

Advantage: All the Electronic component are from big brand such as Neutrik connector sanken transistor

Amplifier Suggest match:

4pcs Single 15 inch or 4pcs Double 15 inch professional PA speaker or 2pcs single 15 inch full frequency professional PA speaker + 2pcs single 18 inch sub woofer

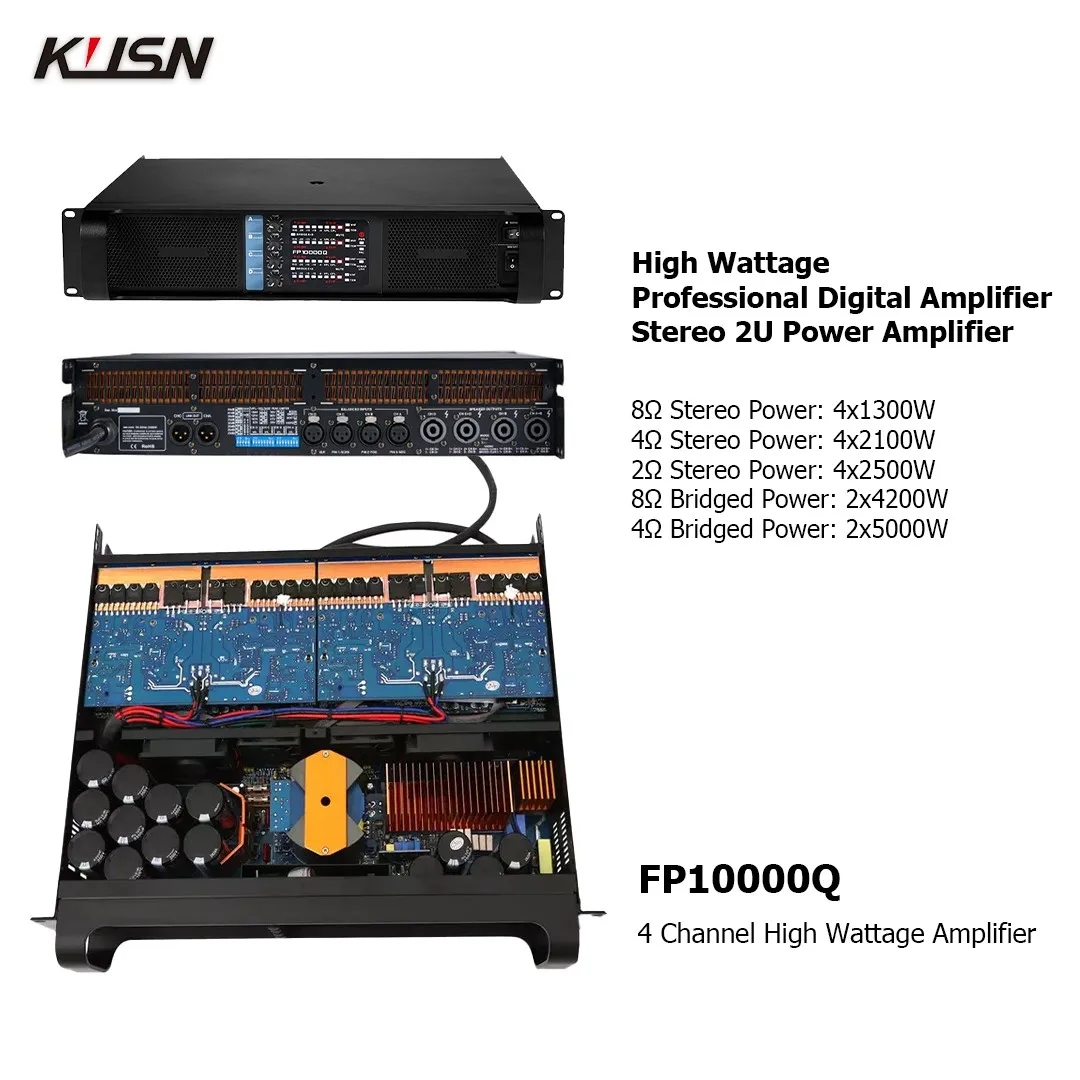

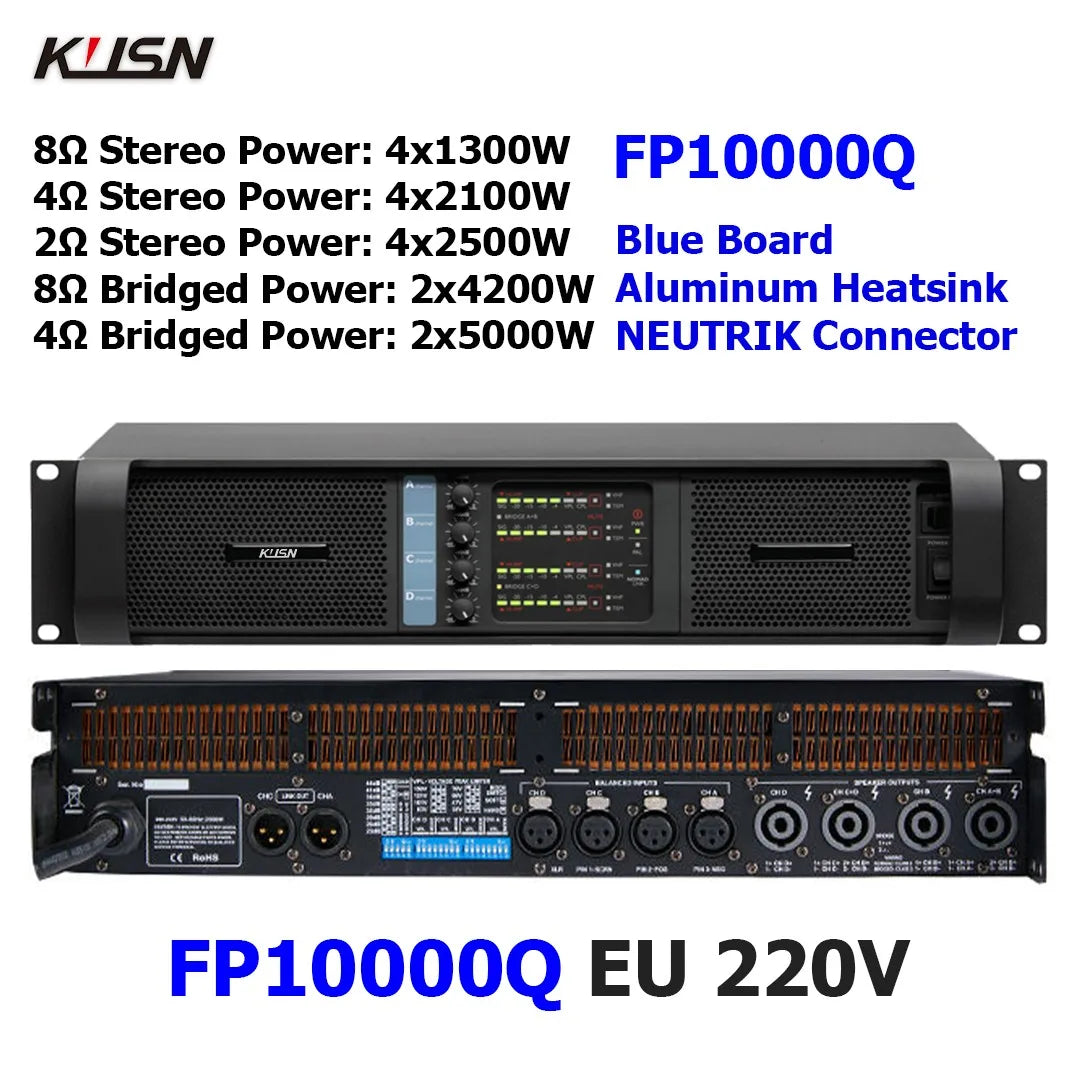

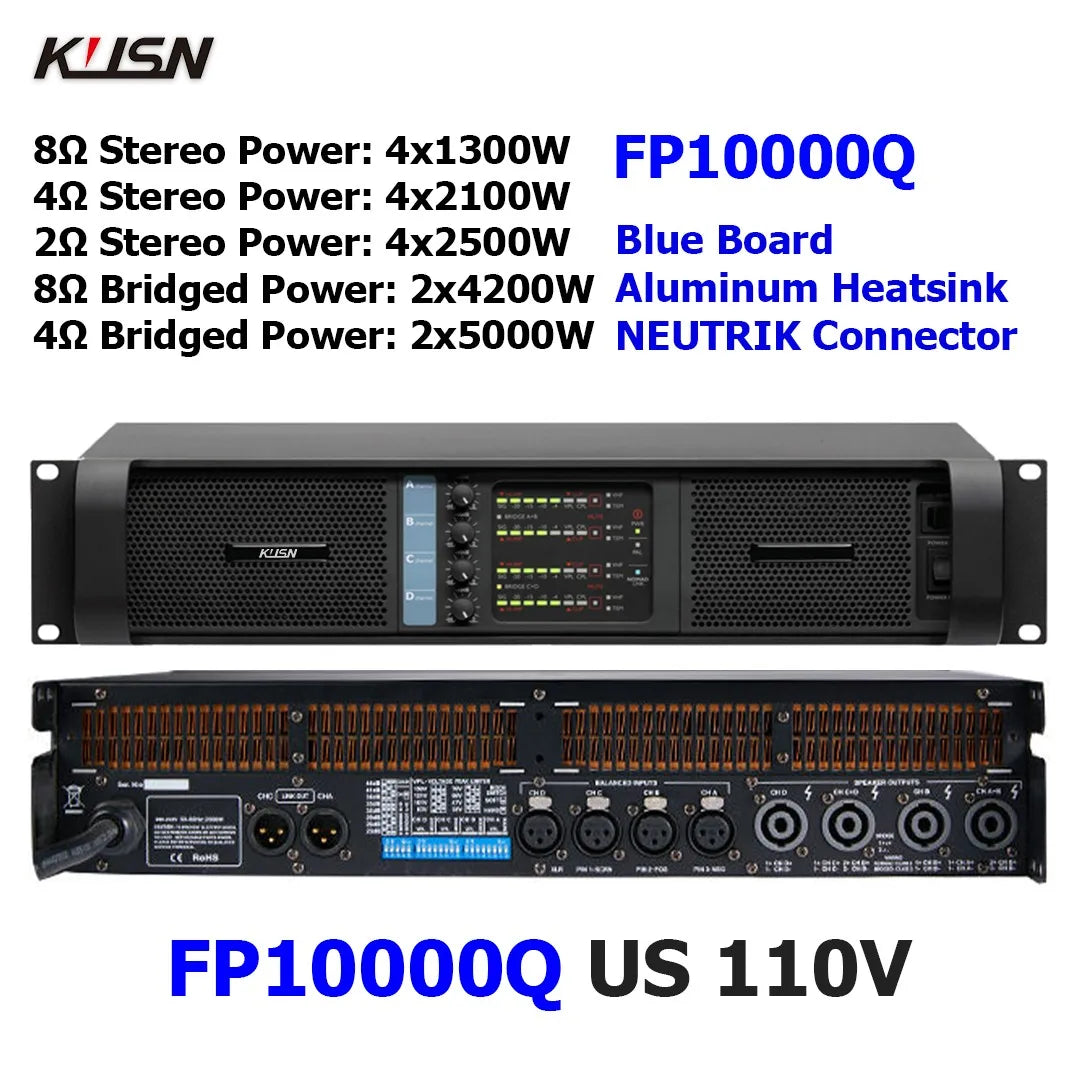

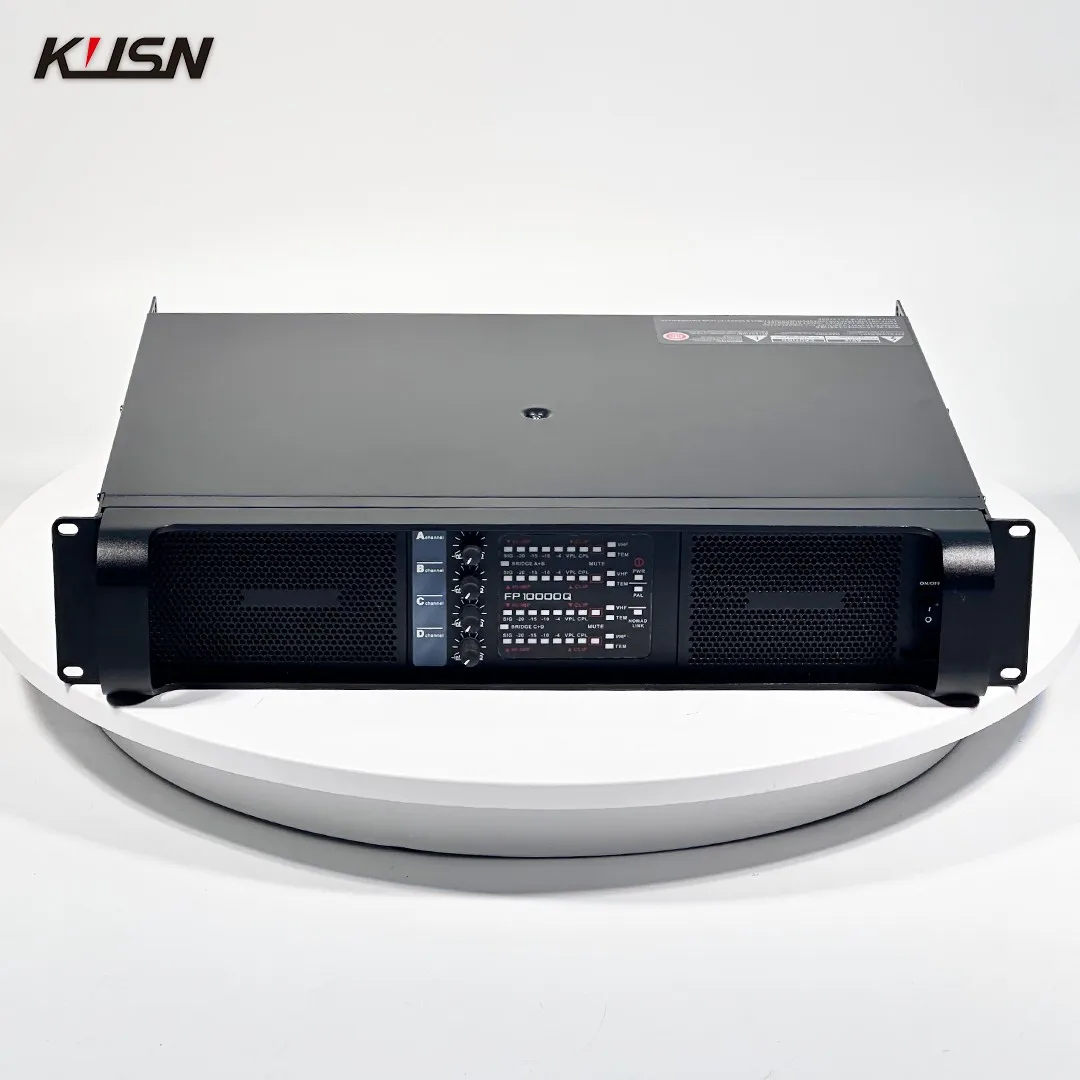

FP10000Q Features:

● 8Ω Stereo Power: 4x1300W
● 4Ω Stereo Power: 4x2100W
● 2Ω Stereo Power: 4x2500W (Stable)
● 8Ω Bridged Power: 2x4200W
● 4Ω Bridged Power: 2x5000W
● Frequency Response (+0/-0.3dB, 1W/8Ω): 20Hz-34KHz
● Total Harmonic Distortion (THD) 20Hz-20kHz 1W: <0.1%
● Signal-to-Noise Ratio: >112dB
● Channel Separation (Crosstalk) at 1kHz: >70dB

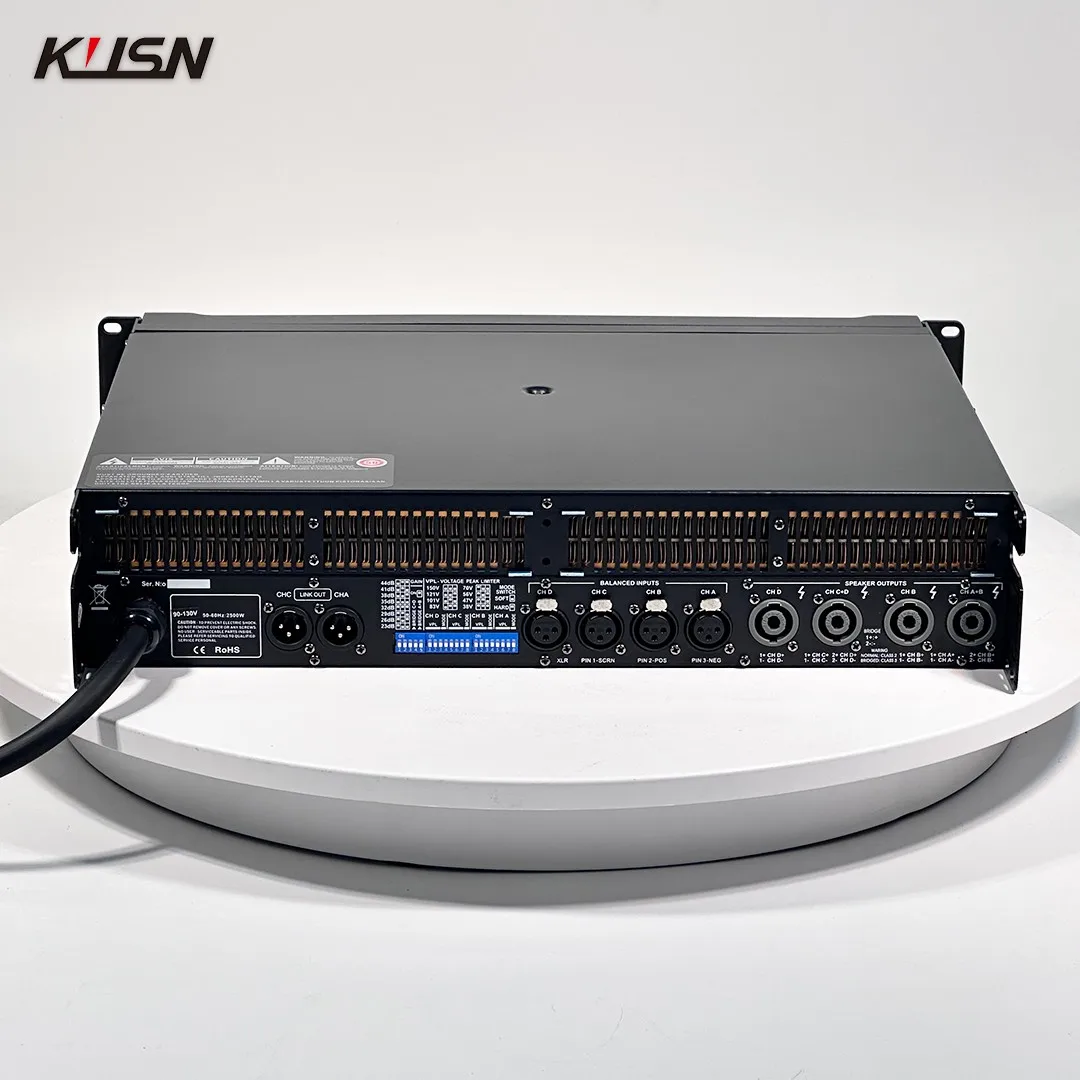

● Input Connectors: XLR female
● Output Connectors: Speakon
● Input Impedance: 20KΩ balanced
● Level Adjustment: Front panel potentiometer, from negative infinity to 0dB

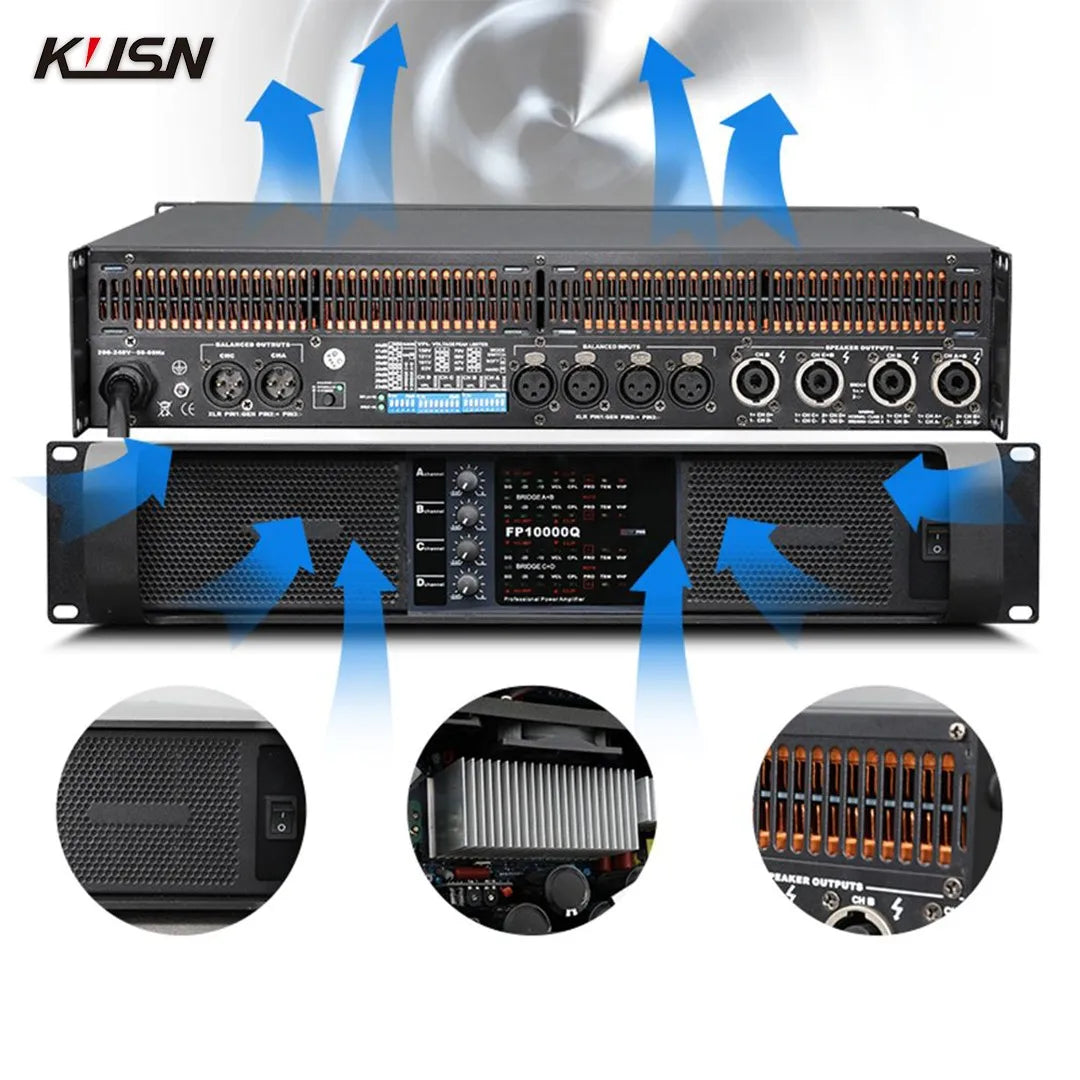

● Cooling Method: Stepless fan, airflow from front to back
● Amplifier Protection: Short circuit, open circuit, DC voltage, overheat, RF, ultra-low frequency protection
● Power Supply: AC 110V(±20%)/220V(±10%) 50-60Hz
● Chassis Dimensions (H×W×D): 88mm × 483mm × 396mm
● Packaging Dimensions (H×W×D): 180mm × 560mm × 500mm
● Net Weight: 12kg
● Gross Weight: 14.5kg

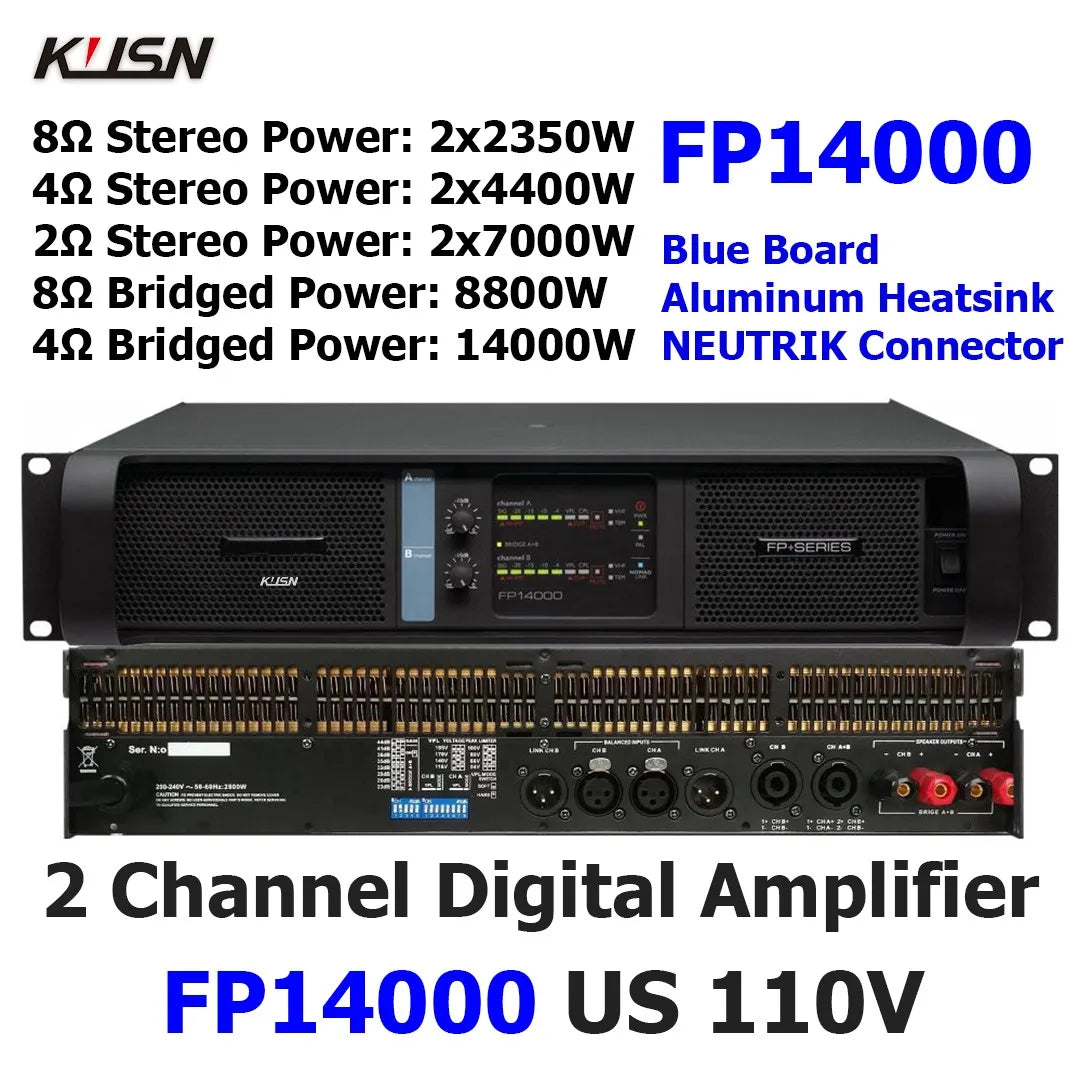

FP14000 Features

● 8Ω Stereo Power: 2x2350W
● 4Ω Stereo Power: 2x4400W
● 2Ω Stereo Power: 2x7000W
● 8Ω Bridged Power: 8800W
● 4Ω Bridged Power: 14000W
● Frequency Response (+0/-0.3dB, 1W/8Ω): 20Hz-34KHz
● Total Harmonic Distortion (THD) 20Hz-20kHz 1W: <0.1%
● Signal-to-Noise Ratio: >112dB
● Channel Separation (Crosstalk) at 1kHz: >70dB
● Input Connectors: XLR female
● Output Connectors: Binding posts
● Input Impedance: 20KΩ balanced
● Level Adjustment: Front panel potentiometer, from negative infinity to 0dB
● Cooling Method: Stepless fan, airflow from front to back
● Amplifier Protection: Short circuit, open circuit, DC voltage, overheat, RF, ultra-low frequency protection
● Power Supply: AC 220V (±10%) 50-60Hz
● Chassis Dimensions (H×W×D): 88mm × 483mm × 396mm
● Packaging Dimensions (H×W×D): 180mm × 560mm × 500mm
● Net Weight: 12kg
● Gross Weight: 13.4kg

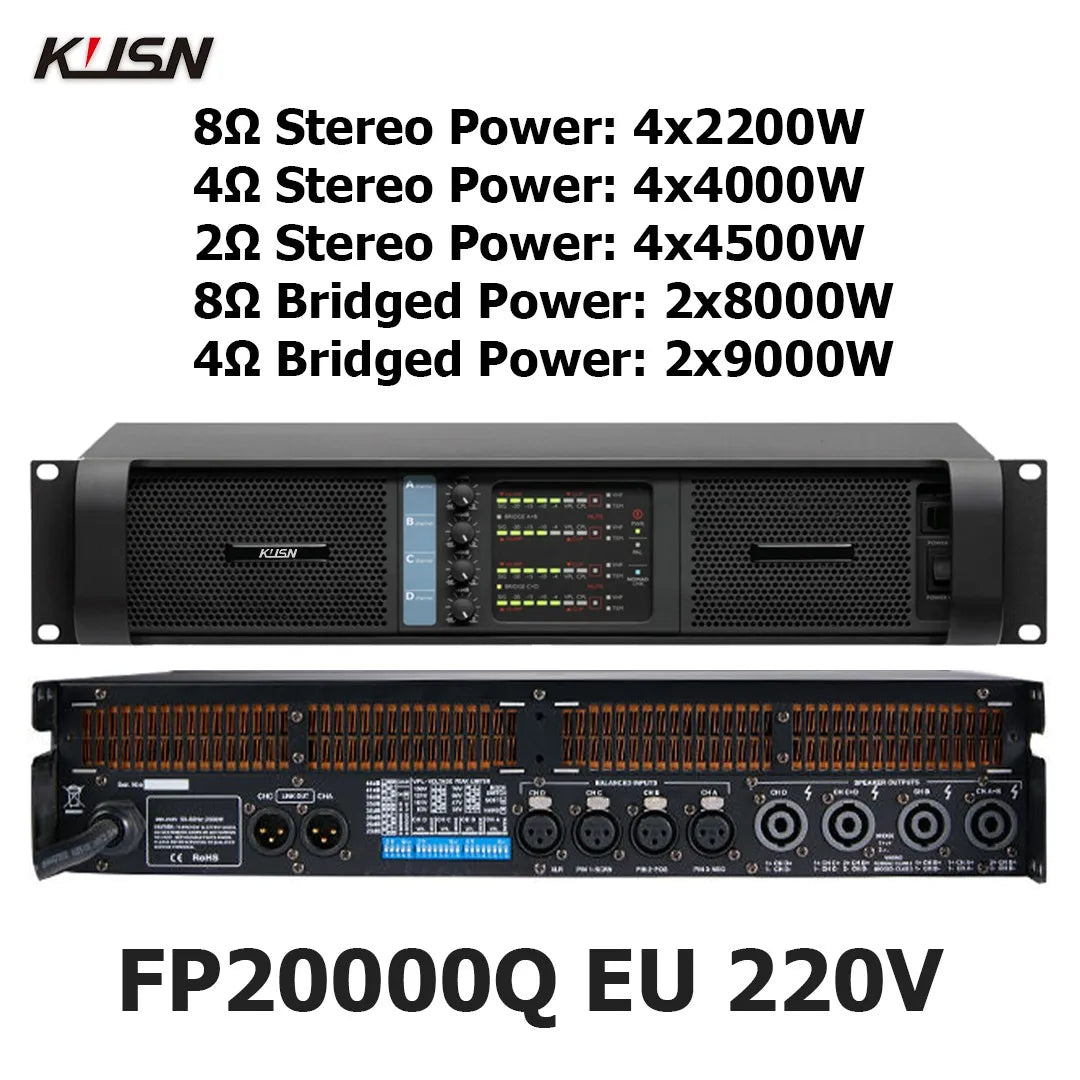

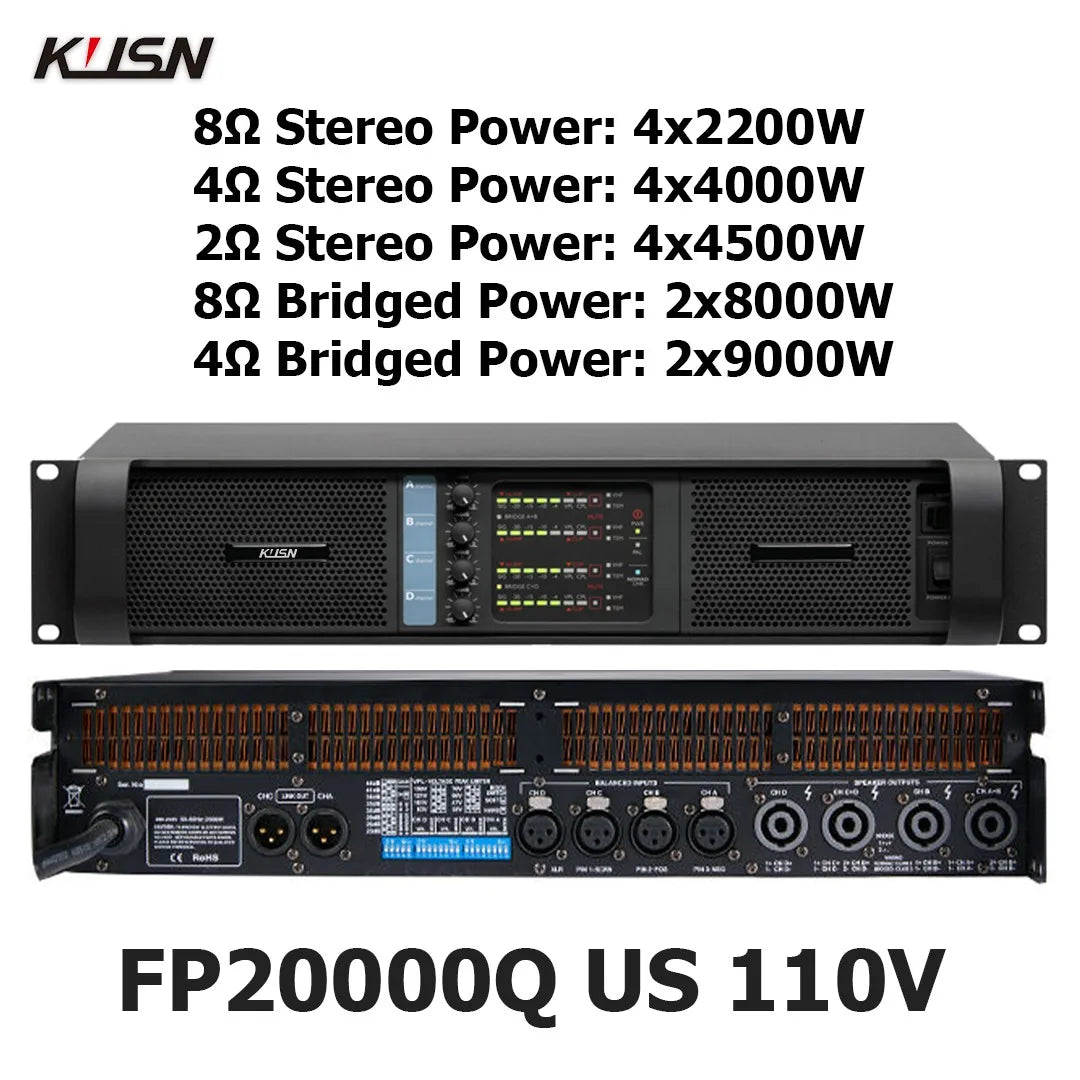

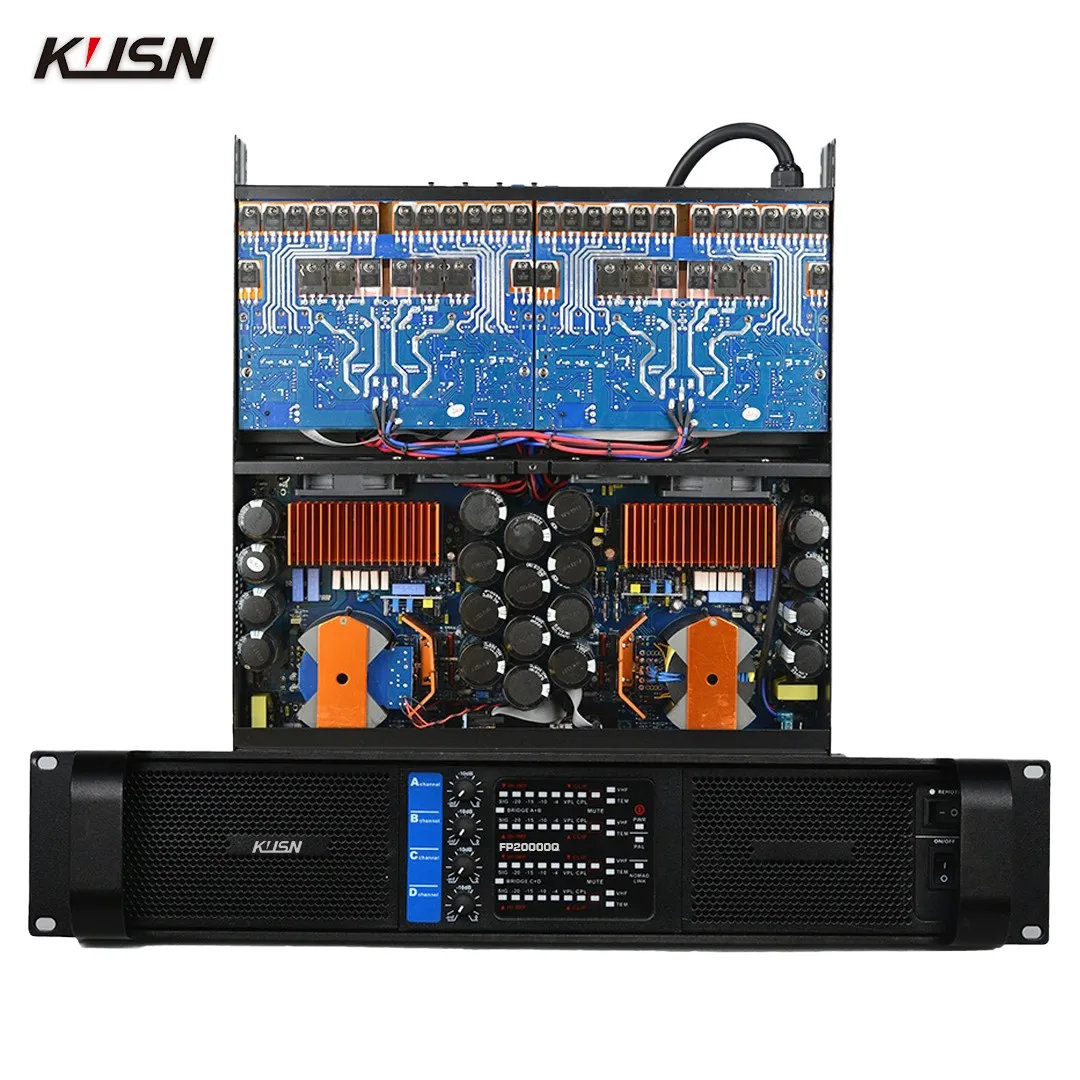

FP20000Q Features

● 8Ω Stereo Power: 4x2200W
● 4Ω Stereo Power: 4x4000W
● 2Ω Stereo Power: 4x4500W
● 8Ω Bridged Power: 2x8000W
● 4Ω Bridged Power: 2x9000W
● Frequency Response (+0/-0.3dB, 1W/8Ω): 20Hz-34KHz
● Total Harmonic Distortion (THD) 20Hz-20kHz 1W: <0.1%
● Signal-to-Noise Ratio: >112dB
● Channel Separation (Crosstalk) at 1kHz: >70dB
● Input Connectors: XLR female
● Output Connectors: Speakon sockets
● Input Impedance: 20KΩ balanced
● Level Adjustment: Front panel potentiometer, from negative infinity to 0dB
● Cooling Method: Stepless fan, airflow from front to back
● Amplifier Protection: Short circuit, open circuit, DC voltage, overheat, RF, ultra-low frequency protection
● Power Supply: AC 220V (±10%) 50-60Hz
● Chassis Dimensions (H×W×D): 90mm × 510mm × 480mm
● Packaging Dimensions (H×W×D): 580mm × 180mm × 560mm
● Net Weight: 16.8kg
● Gross Weight: 18kg
